Uses:

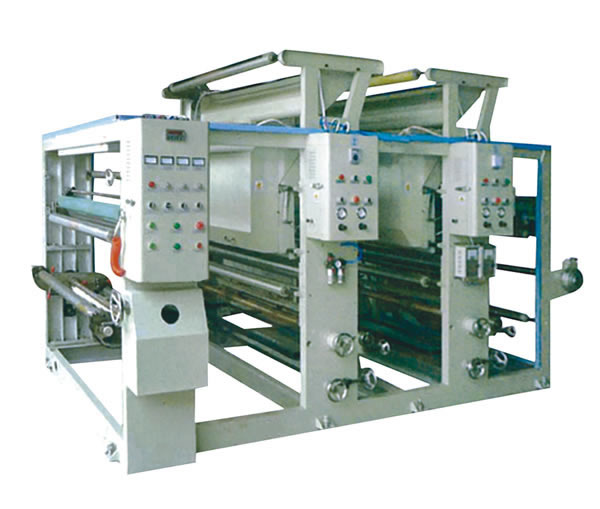

This applies to non-woven special gravure printing machine, BOPP, PET, PVC, PE, web, etc., with good printing performance of rolling material for multicolor continuous printing.
Features:
1, Printing color: 2 colors (can do up to 13 color according to user requirements extended width)
2, the printing units according to customer requirements can be both positive and negative changes in continuous time to complete printing.
3, single-position unwinding, rewinding the use of duplex flip structure (based on user request to change the unwinding of duplex)
4, the host can use electromagnetic speed or frequency.
5, unwinding and unwinding the traction adopts magnetic powder brake.
6, rolling and rolling traction motor control the use of force rules
7, electric smart temperature.
8, double drying tunnel design, dry faster.
9, embossing: embossing rail double cylinder, blade: pressure
10, printing cylinder: a shaft-mounted version.
MODLE | YAS-600N | YAS-800N | YAS-1000N | YAS-1200N |
Diameter of cylinder | 100-320MM | 100-320 | 100-320MM | 100-320MM |
MaxPrinting widht | 600MM | 800MM | 1000MM | 1200MM |
Diameter of unwind&rewind | 1000MM | 1000MM | 1000MM | 1000MM |
Printing speed | 5-35M/MIN | 5-35M/MIN | 5-35M/MIN | 5-35M/MIN |
Register Precision | 《0.15MM | 《0.15MM | 《0.15MM | 《0.15MM |
Dryting method | 电加热 | 电加热 | 电加热 | 电加热 |
Machine power | 18KW | 22KW | 26KW | 28KW |
Machine weight | 2000KG | 2500KG | 3500KG | 4000KG |
Overalldimensions(LXWXH) | 3500X1800X2300MM | 3500X2000X230MM | 3500X2200X2300MM | 3500X2400X2300MM |
