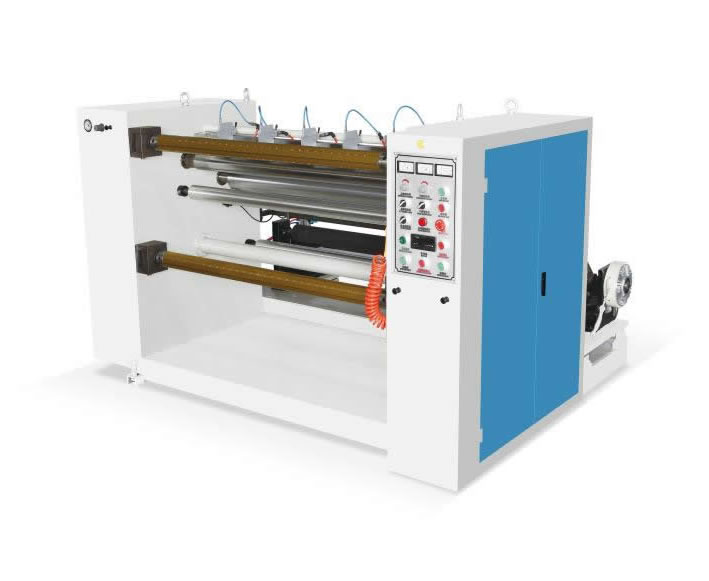

LFQ-A paper cutting machine

This machine is suitable for: stripping of simple materials.

Performance and features:
1.Independent total control screen, the operation is more flexible and convenient.
2.Unwinding automatically corrects the deviation, and the photoelectric eye is suitable for tracking the edge and color of transparent materials.
3.Unwinding tension is controlled by magnetic powder brake.
4.Winding is controlled by magnetic powder clutch.
5.The length of the material is automatically counted.

6.Air knife slitting.

model	LFQ--A1100type	LFQ--A1300type
Cutting width of the coil	1000mm	1200mm
Cutting diameter	400mm	400mm
Slitting coil width	30--1000mm	30--1200mm
Slitting speed	5--160m/min	5--160m/min
Correction error	<±0.3mm	<±0.3mm
Total power	5kw	5kw
Total Weight	about1800kg	about2100kg
Dimensions / (width × height × length)	2045×1430×1220	2230×1430×1220
